Super vertical   NEW MODEL WITH 60 m.

Vertical antenna for the low bands with differential reactance
Configurations:
40/60/80 - 30/40/60/80 - 40/60/80/160 - 30/40/60/80/160
Technical data
Height 12 m
5kw power
3.5KW power for configurations with 30m
Elements diameters 50-45-40-35-30-25-20
Weight 12kg
Coil in aluminum tube for a perfect mechanical seal.
Max wind speed with guy wires 130 km/h
Vswr 1:1,5 or better on all bands
Bandwidth 30m/40m whole band, 80m – 60khz,  160m-20khz
At vswr 1:2 or better

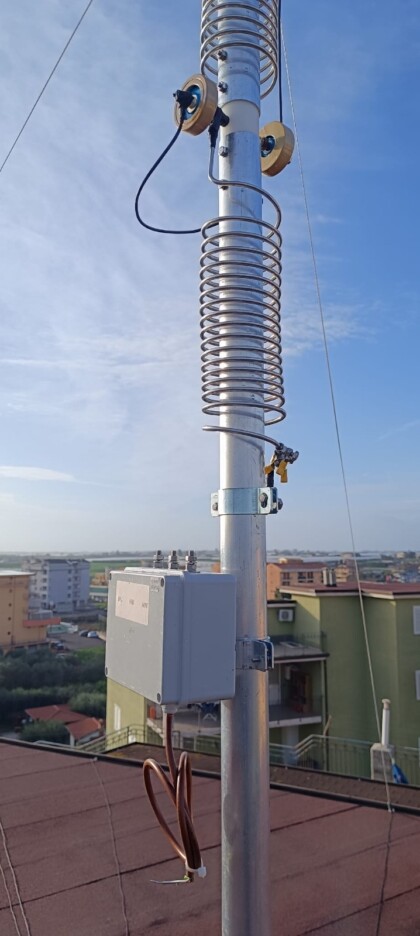

Switch cw / rtty / SSB for 80m optional
bandwidth 60KHz cw --60 KHz rtty -- 60 KHz ssb
Hardware full stainless steel

VERSION
Monoband
30/40/60                    euro 290,00
80/160                       euro 340,00

Multiband
40 - 80                       euro 470,00
30 - 40 - 80                 euro 540,00
40 - 80 - 160               euro 540,00
30 - 40 - 80 - 160         euro 570,00

1-) switch cw/rtty/ssb plus controller euro 120,00
2-) switch cw/rtty/ssb band 80 m. and 60 m.
    plus controller euro 200,00
3-) switch  band 60 m. plus controller euro 120,00

The Super vertical antennas differ from similar ones on the market in several features.
All hardware is stainless steel including hose clamps that secure the coil.
The telescopic tubes are fastened with stainless steel flanges
The capacitors used in the LC circuits are large in size with considerable power handling up to 5kw
The coil are made, unlike the similar antennas on the market, with aluminum tube and not with aluminum wire.
This feature allows to have a perfect mechanical seal of the LC circuit, an easy antenna calibration, a remarkable mechanical resistance to external stress, weakest point of the coil made of aluminum wire.
