New SV 8 PLUS / ULTRA / BOOM BOOM

self-supporting with WIND SURVIVAL

HF 4-6-10-11*-12-15-17-20-30-40

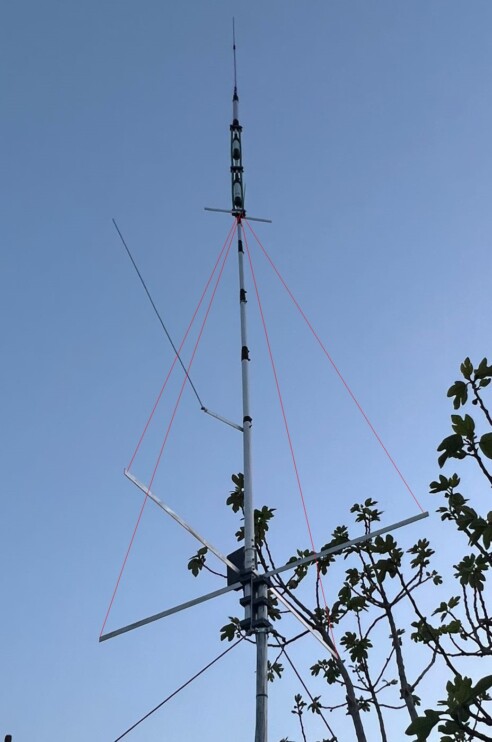

Vertical-Array is proud to present the self-supporting HF SV8 BOOM BOOM/ULTRA/PLUS vertical antenna

The antenna has been designed to operate on the HF bands 4-6-10-11*-12-15-17-20-30-40 meters.

The main features that place it at the top of its category are:

Self-supporting antenna does not require additional guy lines for winds up to 80Kmh

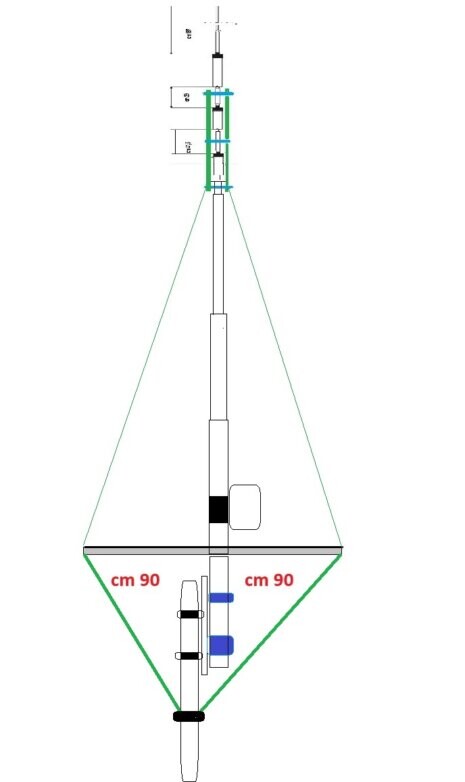

Reduced overall width, the radials are 75cm, this allows easy installation in all situation’s excellent electrical efficiency, 3/8 wavelength provide maximum gain with low radiation angle for long distance connections.

The best power handling in its category.

Mechanical construction designed for high wind resistance.

Traps made with highly weather-resistant material.

NEW Matching Network with ferrite cores for high power.

The SV8 is 7.70m high, bandwidth in 40m = ~200 Khz.

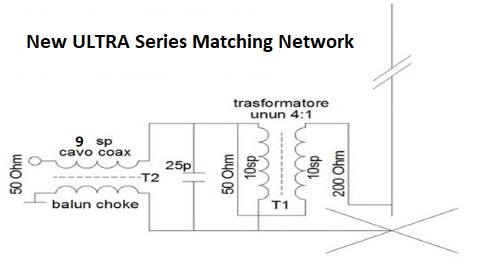

THE HEART OF THE SV8 IS THE MATCHING NETWORK

SV8 PLUS
1500 W - 1000 W 40M -
500 W DIG
SV8 ULTRA
2000 W - 1500 W 40M -
750 W DIG
SV8 BOOM BOOM
3000W - 2000 W 40M
1250 DIG



Mechanical Construction
All Vertical-Array antennas are made with great care for mechanical construction.
The SV8 PLUS/ULTRA has solutions that allow it to withstand great atmospheric stress, tubes diameter mm 50-45-40-35 thickness 2mm.

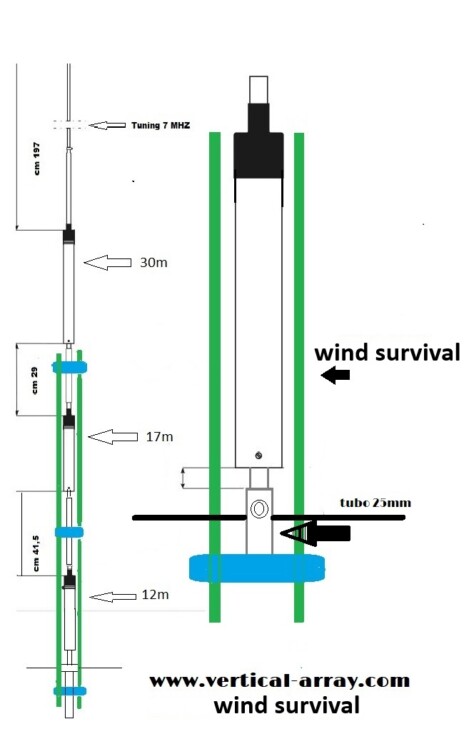

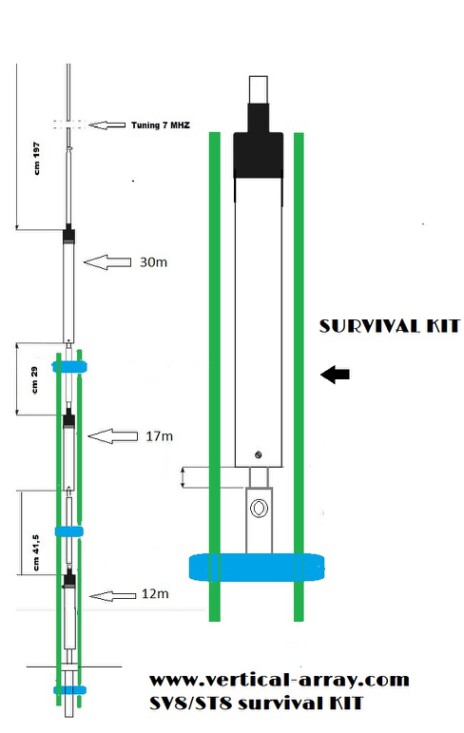

Wind Survival




Price:

SV8-PLUS euro 900,00  wind survival
SV8-ULTRA euro 1000,00 wind survival
SV8-BOOM BOOM euro 1200,00 wind survival
